argocd rbac

목적

argocd 접속 시 github와 연동하여 인증된 사용자만 접속하게 하기 위함



1. 설치

#https://argo-cd.readthedocs.io/en/stable/
#https://kubernetes.io/docs/tasks/manage-kubernetes-objects/kustomization/

#install
$ kubectl create namespace argocd
$ kubectl apply -n argocd -f https://raw.githubusercontent.com/argoproj/argo-cd/stable/manifests/install.yaml
#kubectl info
$ kubectl get all -n argocd

#argo cd cli install
#https://argo-cd.readthedocs.io/en/stable/cli_installation/
$ curl -sSL -o argocd-linux-amd64 https://github.com/argoproj/argo-cd/releases/latest/download/argocd-linux-amd64
$ sudo install -m 555 argocd-linux-amd64 /usr/local/bin/argocd
$ rm argocd-linux-amd64

#Type : "ClusterIP", "ExternalName", "LoadBalancer", "NodePort"
$ kubectl patch svc argocd-server -n argocd -p '{"spec": {"type": "LoadBalancer"}}'

# argo cd password (admin)
$ kubectl -n argocd get secret argocd-initial-admin-secret -o jsonpath="{.data.password}" | base64 -d; echo
P868pttdD5Ms-ZUb
username : admin
password : xTAeegVy4tseYN5Z

$ kubectl get svc argocd-server -n argocd

#argocd login
$ argocd login devtest.test.kr
Username: admin
Password:
'admin:login' logged in successfully
Context 'devtest.test.kr' updated

#change password (cli)
$ argocd account update-password
*** Enter password of currently logged in user (admin):
*** Enter new password for user admin:
*** Confirm new password for user admin:
Password updated
Context 'devtest.test.kr' updated

#sample apply
$ argocd app create sample-app \
 --repo https://github.com/argoproj/argocd-example-apps.git \
 --path guestbook \
 --dest-server https://kubernetes.default.svc \
 --dest-namespace default

$ argocd app get sample-app
$ argocd app sync sample-app



2. rbac 적용

2-1. argocd-rbac-cm

#https://argo-cd.readthedocs.io/en/stable/operator-manual/rbac/
$ kubectl edit configmaps -n argo argocd-rbac-cm
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: argocd-rbac-cm
  namespace: argocd
#####
data:
  policy.default: role:readonly
  policy.csv: |
    p, role:org-admin, applications, *, */*, allow
    p, role:org-admin, clusters, get, *, allow
    p, role:org-admin, repositories, get, *, allow
    p, role:org-admin, repositories, create, *, allow
    p, role:org-admin, repositories, update, *, allow
    p, role:org-admin, repositories, delete, *, allow
    p, role:org-admin, projects, get, *, allow
    p, role:org-admin, projects, create, *, allow
    p, role:org-admin, projects, update, *, allow
    p, role:org-admin, projects, delete, *, allow
    p, role:org-admin, logs, get, *, allow
    p, role:org-admin, exec, create, */*, allow

    #g, your-github-org:your-team, role:org-admin
    g, testorg:dev, role:org-admin
#####

2-2. argocd-cm

$ kubectl edit configmaps -n argo argocd-cm
---
apiVersion: v1
##### 추가
data:
  accounts.alice: apiKey, login
  accoutns.alice.enabled: "false"
  dex.config: |
    connectors:
      # GitHub example
      - type: github
        id: github
        name: GitHub
        config:
          clientID: ...5c2
          clientSecret: ...4fe
          redirectURI: http://devtest.test.kr:5556/dex/callback
          orgs:
          - name: testorg
            teams:
            - infra
  url: http://devtest.test.kr
#####
kind: ConfigMap
metadata:
  annotations:
    kubectl.kubernetes.io/last-applied-configuration: |
      {"apiVersion":"v1","kind":"ConfigMap","metadata":{"annotations":{},"labels":{"app.kubernetes.io/name":"argocd-cm","app.kubernetes.io/part-of":"argocd"},"name":"argocd-cm","namespace":"argo"}}
  creationTimestamp: "2024-01-21T14:30:10Z"
  labels:
    app.kubernetes.io/name: argocd-cm
    app.kubernetes.io/part-of: argocd
  name: argocd-cm
  namespace: argo
  resourceVersion: "142137"
  uid: c20d9548-cf27-49f5-bb5e-e1806fbbb351

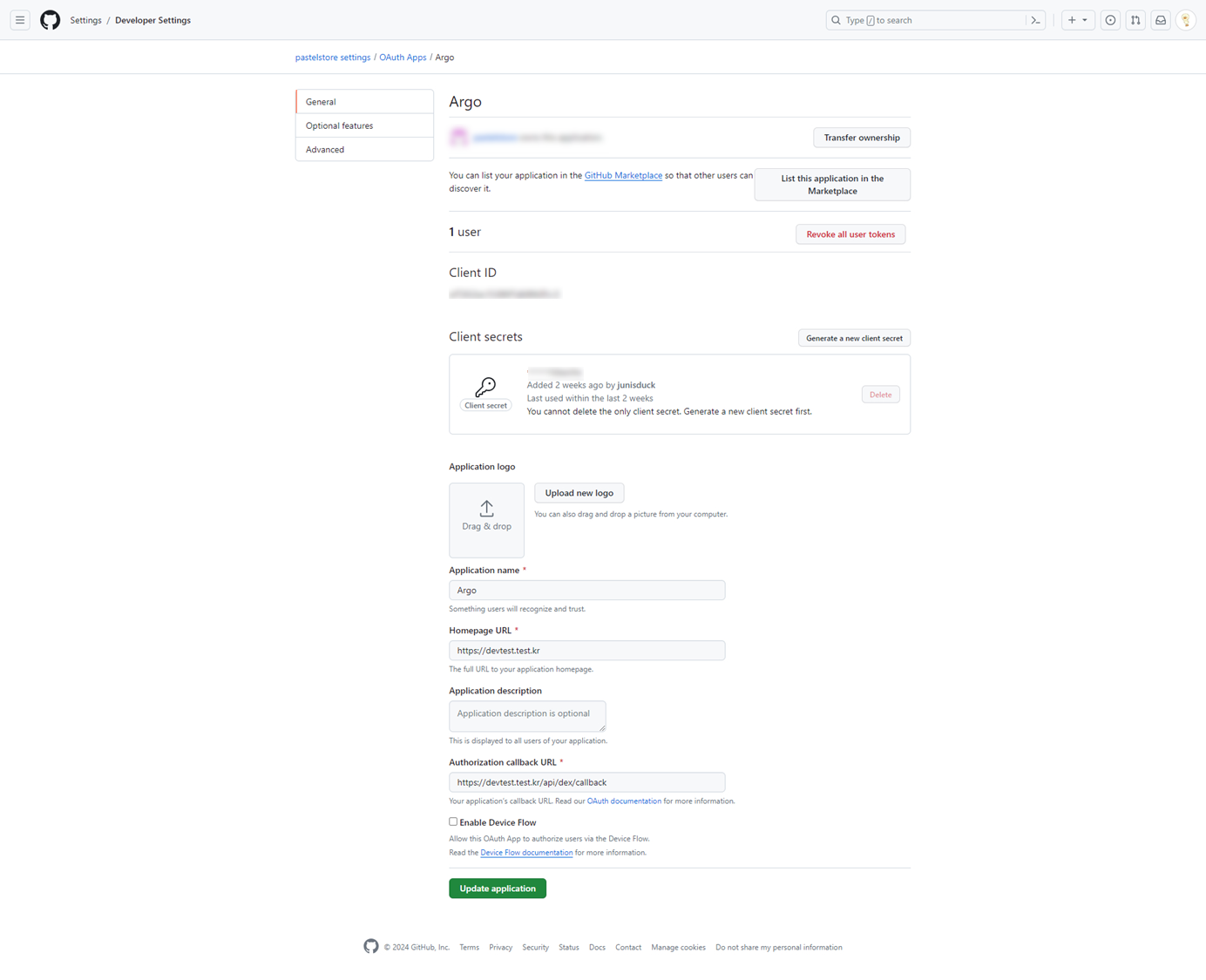

3. github org 설정
